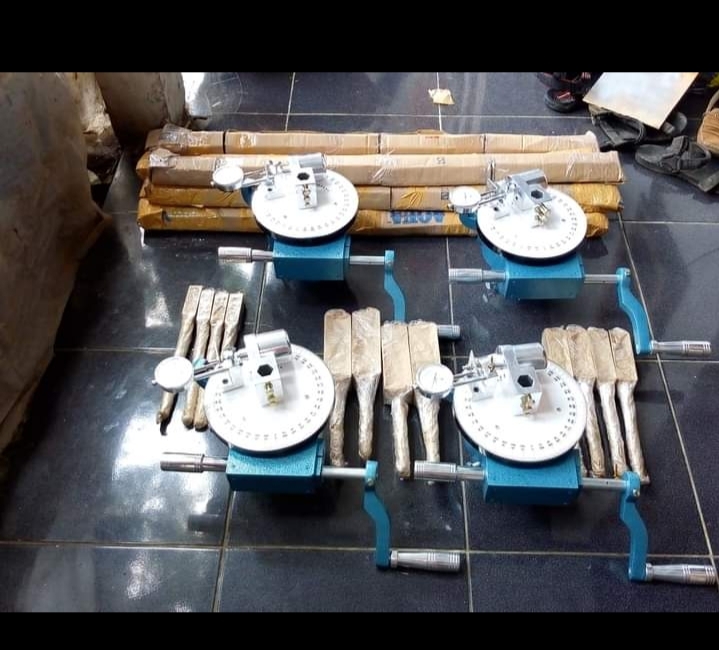

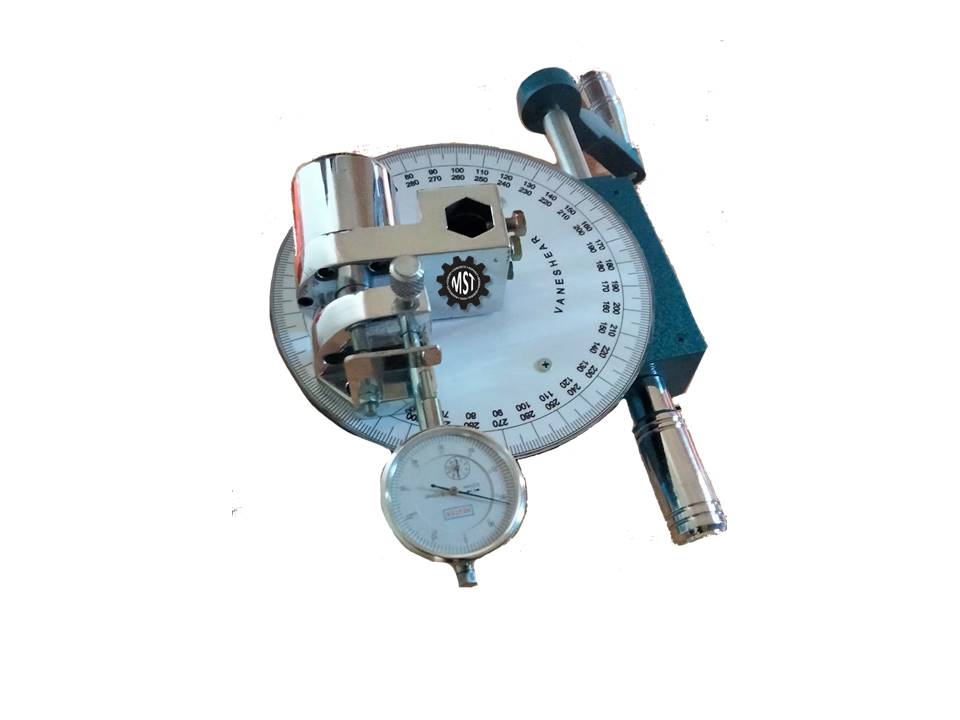

VANE SHEAR TEST

Description :

Mechanical Vane Shear using for field investigation of und-drained shear strength and sensitivity of the soft and medium stiff caly.

Measurement : 0 to 60 Kpa and 0 to 100 Kpa

Reading By : 2″ dia, Gauge 10 x 0.01 mm

Come with Four (4) vane shear : 38 x 76 mm, 55 x 110 mm, 75 x 150 mm, 95 x 190 mm 1 ea Rod (1m Length) Dimension (l x w x h ) : 38 x 40 x 36 cm Gross Weigh t : 12 kg
