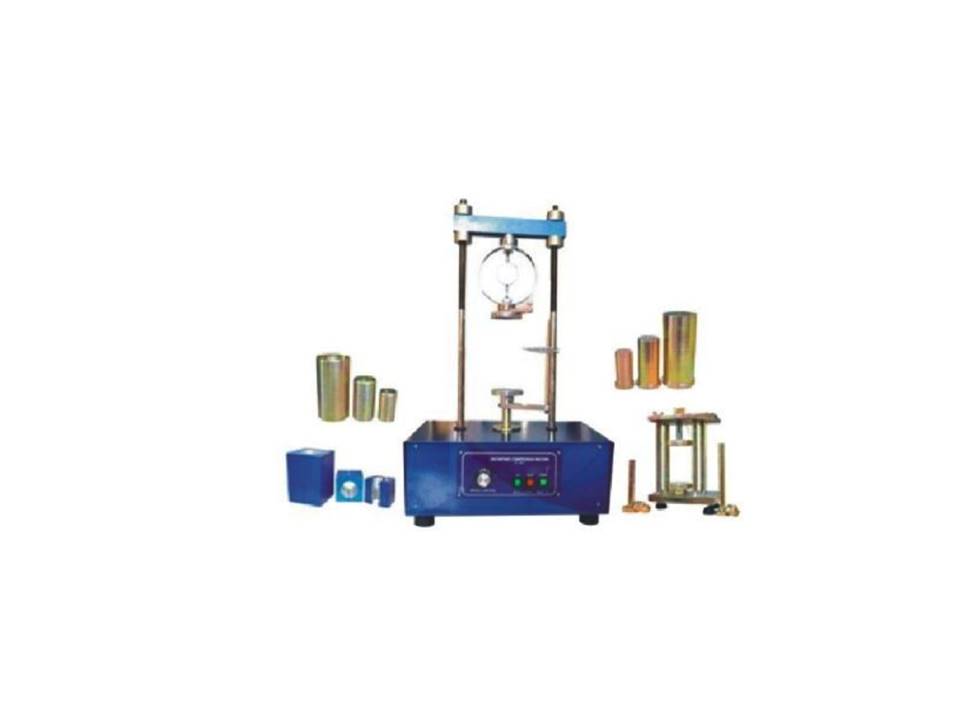

Electrik unconfined compression machine

For determining stress strain relationship of cohesive soil without confining pressure..

Unconfined Compression Machine Cast alumunium, gear box, adjustable height of top platen, hand operated 200 kg capacity 1 Set
Sample Tubes.

Consist of :
Sample Tubes 35.0 mm x 70 mm height 1 Pc
Sample Tubes 47.5 mm x 95 mm height 1 Pc
Sample Tubes 70.0 mm x 140 mm height 1 Pc
Split Sample Tubes

Consist of :
Split Sample Tubes 35.0 mm x 70 mm height 1 Pc
Split Sample Tubes 47.5 mm x 95 mm height 1 Pc
Split Sample Tubes 70.0 mm x 140 mm height 1 Pc
Extruder

Consist of :
Extruder 34.5 mm x 71 mm height 1 Pc
Extruder 47.0 mm x 96 mm height 1 Pc
Extruder 69.5 mm x 141 mm height 1 Pc
Trimmer Steel frame, 3 tubes size 1 Set
Proving Ring 100 kg capacity 1 Set
Dial Indicator Range 30 mm x 0.01 mm 1 Pc
Thin Box Alumunium, 60 gr capacity 12 Pcs
Wire Saw 10 cm length approx. 1 Pc

Dimension ( l x w x h) : 80 x 40 x 40 cm
Gross Weight : 50 kg
